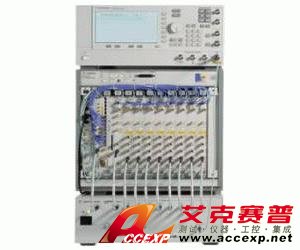

Agilent E4899A 100 Gb/s Serial BERT比特誤碼率分析測試儀
名稱：誤碼率分析儀
品牌：
型號：
簡介：Agilent E4899A 100 Gb/s Serial BERT比特誤碼率分析測試儀Data range: 40 Gb/s to 100 Gb/s Level range: 200 mV to 400 mV Agilent E4899...
申請服務
- 產品介紹
Agilent E4899A 100 Gb/s Serial BERT比特誤碼率分析測試儀Data range: 40 Gb/s to 100 Gb/s
•Level range: 200 mV to 400 mV
Agilent E4899A 100 Gb/s Serial BERT比特誤碼率分析測試儀Transition time: 5ps
•Jitter: 400 fs rms
•PRBS or memory based pattern
The E4899A 100 Gb/s Serial BERT enables research labs and standard bodies to test next generation ultra-high speed links designs. The E4899A 100 Gb/s Serial BERT is based on the Agilent ParBERT 81250 and the new high-speed E4898A 100 Gb/s BERT Front-End. The E4899A is the only BER test solution on the market for data rates up to 100 Gb/s.
The E4899A stimulates the device with either PRBS or memory based patterns.
Agilent E4899A 100 Gb/s Serial BERT比特誤碼率分析測試儀Unique data range from 40 Gb/s to 100 Gb/s
Level range: 200 mV to 400 mV
Transition time: 5ps
Jitter: 400 fs rms
Agilent E4899A 100 Gb/s Serial BERT比特誤碼率分析測試儀Flexible patterns for stimulus (PRBS and memory based)
Standard, proven and turnkey solution, versus a self-developed lab setup
electrical differential interfaces with 1.85 mm connectors
Agilent E4899A 100 Gb/s Serial BERT比特誤碼率分析測試儀Controlled from user software running on an external Windows XP PC
