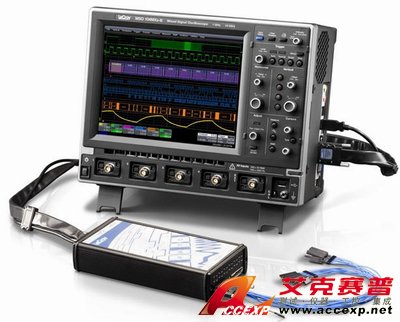

力科 LeCroy WaveSurfer MXs-B示波器
名稱：示波器
品牌：
型號：
簡介：美國力科 LeCroy WaveSurfer MXs-B示波器集高性能硬件、強大的波形處理和高級數學運算、測量以及調試工具于一體，配備了寬大的觸摸屏和直觀的用戶界面。 混合信號-互不影響 始終可以在18個通道，1GS/s，250MHz的條件...
申請服務
- 產品介紹
美國力科 LeCroy WaveSurfer MXs-B示波器集高性能硬件、強大的波形處理和高級數學運算、測量以及調試工具于一體，配備了寬大的觸摸屏和直觀的用戶界面。
混合信號-互不影響
始終可以在18個通道，1GS/s，250MHz的條件下利用示波器的全部工具進行測量和分析。
快速識別并分離出問題點
使用WaveScan定位數字或模擬波形中的不良波形、干擾或其它異常。
測量和分析
使用18種測量參數和23種數學函數來幫助理解您測量的波形的全部細節。
更快地發現問題
利用256級灰度在22,000次波形 / 秒的速度下觀察波形的變化。
簡捷的觸摸系統
利用寬大的觸摸屏和直觀的用戶界面，對通道、觸發、數學運算和測量的控制都變得極為簡捷。
模擬，數字，串行
捕獲并查看最多4個模擬和18個數字的波形，對15個串行數據標準進行解碼
保存，記錄，報告
只需輕觸一個按鍵即可保存所有的結果和數據，并且通過LabNotebook創建用戶報告
力科 LeCroy WaveSurfer 24MXs-B示波器(200 MHz Bandwidth, 4 Input Channels, 2.5 GS/s Max Sample Rate)
力科 LeCroy WaveSurfer 42MXs-B (400 MHz Bandwidth, 2 Input Channels, 5 GS/s Max Sample Rate)
力科 LeCroy WaveSurfer 44MXs-B示波器(400 MHz Bandwidth, 4 Input Channels, 5 GS/s Max Sample Rate)
力科 LeCroy WaveSurfer 62MXs-B (600 MHz Bandwidth, 2 Input Channels, 5 GS/s (10 GS/s Interleaved) Max Sample Rate)
力科 LeCroy WaveSurfer 64MXs-B示波器(600 MHz Bandwidth, 4 Input Channels, 5 GS/s (10 GS/s Interleaved) Max Sample Rate)
力科 LeCroy WaveSurfer 104MXs-B (1 GHz Bandwidth, 4 Input Channels, 5 GS/s (10 GS/s Interleaved) Max Sample Rate)
力科 LeCroy WaveSurfer MXs-B示波器主要規格：
帶寬 200 MHz to 1 GHz
起步價 $6,760
標配記錄長度 12.5 Mpts/ch
最大記錄長度 25 Mpts/ch Interleaved
最高采樣率 10 GS/s
力科 LeCroy WaveSurfer MXs-B示波器選項Serial Data Compliance：
WSXs-ET-PMT
Electrical Telecom Mask Test Pkg.
Serial Trigger and Decode
WSXs-AUTO
Automotive bundle, Includes Can TD, Flexray TD, LIN TD
WSXs-EMB
Embedded bundle, Includes I2C TD, SPI TD, UART TD
WSXS-1553 TD
MIL-STD-1553 Trigger and decode option for WaveSurfer Xs
WSXs-ARINC429bus DSymbolic
ARINC 429 Bus Symbolic Decode option for WaveSurfer Xs/Xs-A
WSXs-AudioBus TD
AudioBus trigger and decode for WaveSurfer Xs
WSXs-CANbus TD
CAN Trigger, Decode Option for WaveSurfer Xs
WSXs-DigRF3Gbus D
DigRF 3G Bus Decode option for WaveSurfer Xs/Xs-A
WSXS-I2CBUS TD
I2C Trigger and Decode Option
WSXS-LINBUS TD
LIN Bus Trigger & Decode Opt. for WSXs Oscilloscopes
WSXS-SPIBUS TD
SPI Trigger and Decode Option
WSXS-UART-RS232BUS TD
UART and RS232 Bus Trigger & Decode Opt. for WSXs Oscilloscopes
WSXs-USB2bus D
USB 2.0 Bus Decode option for WaveSurfer Xs/Xs-A
Miscellaneous
WSXs-KYBD
Keyboard Accessory
WSXs-MOUSE
Optical Mouse Accessory
WSXs-HARDCASE
Hard Carrying Case
WSXs-SOFTCASE
Soft Carrying Case
WSXs-RACK
Rack Mount Accessory
WSXs-POUCH
Accessory Pouch
WSXs-MS-CLAMP
Clamp Mounting Stand
WSXs-A-FP-GERMAN
German Front Panel Overlay
WSXs-A-FP-FRENCH
French Front Panel Overlay
WSXs-A-FP-ITALIAN
Italian Front Panel Overlay
WSXs-A-FP-SPANISH
Spanish Front Panel Overlay
WSXs-A-FP-JAPANESE
Japanese Front Panel Overlay
WSXs-A-FP-KOREAN
Korean Front Panel Overlay
WSXs-A-FP-CHNES-TR
Chinese (Tr) Front Panel Overlay
WSXs-A-FP-CHNES-SI
Chinese (Simp) Front Panel Overlay
WSXs-A-FP-RUSSIAN
Russian Front Panel Overlay
Remote Control/Network Options
WS-GPIB
USB2.0 to GP-IB IEEE488.2 Adapter
Mixed Signal Solutions
MS-500
500 MHz Maximum Input Frequency, 18 Channels, 50 Mpts/ch Mixed Signal Oscilloscope Option
MS-500-36
250 MHz Maximum Input Frequency, 36 Channels, 25 Mpts/ch Mixed Signal Oscilloscope Option
MS-250
250 MHz Maximum Input Frequency, 18 Channels, 10 Mpts/ch Mixed Signal Oscilloscope Option
Mixed Signal Accessories
PK400-1
Large gripper probe set for 0.10'' (2.54 mm) pin pitch, includes 10 probes with color-coded leads
PK400-2
Medium gripper probe set for 0.04'' (1.0 mm) pin pitch, includes 10 probes with color-coded leads
PK400-3
Small gripper probe set for 0.008'' (0.2 mm) pin pitch, includes 10 probes with color-coded leads
MSO-MICTOR
Mictor Cable, D0-D35
MSO-3M
3M Interconnect Cable, D0-D17 or D18-D35
Serial Data Test Fixtures
TF-ET
Telecom Adaptor Kit 100Ω, 120Ω, 75Ω
